A good PCB layout for the TL3843BDR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the feedback loop. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive analog circuits.
The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet. Additionally, consider the inductor's saturation current, DC resistance, and core material when selecting an inductor.
The TL3843BDR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
Yes, the TL3843BDR can be used in a synchronous rectification configuration. However, this requires additional external components and careful design to ensure proper operation and minimize power losses.
To troubleshoot issues with the TL3843BDR, start by checking the PCB layout, component values, and soldering quality. Use an oscilloscope to measure the voltage and current waveforms, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and design optimization.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL3843BDR Overview

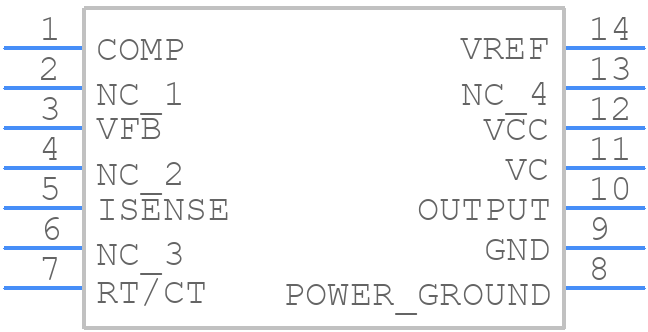

Use the download button to access the TL3843BDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL384,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
