The recommended PCB layout and land pattern for the TL4201EEXA can be found in the E-Switch Inc's application note or by contacting their technical support team directly. They can provide a detailed layout and footprint recommendation to ensure proper mounting and soldering.
To ensure the TL4201EEXA switch is properly sealed and waterproof, follow the recommended PCB layout and land pattern, and apply a suitable sealant or adhesive around the switch's perimeter. Additionally, ensure the switch is mounted on a flat, clean, and dry PCB surface.
The maximum operating temperature range for the TL4201EEXA switch is -20°C to 85°C. However, it's essential to note that the switch's performance and lifespan may be affected by extreme temperatures, and it's recommended to operate the switch within a temperature range of -10°C to 70°C for optimal performance.
The TL4201EEXA switch is designed to withstand moderate vibrations and shocks. However, for high-vibration or high-shock applications, it's recommended to consult with E-Switch Inc's technical support team to determine the switch's suitability and to discuss potential modifications or custom designs that can meet the specific application requirements.
To clean and maintain the TL4201EEXA switch, use a soft, dry brush to remove any debris or contaminants. Avoid using harsh chemicals, solvents, or abrasive materials that can damage the switch's surface or compromise its performance. Regularly inspect the switch for signs of wear or damage and replace it if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL4201EEXA Overview

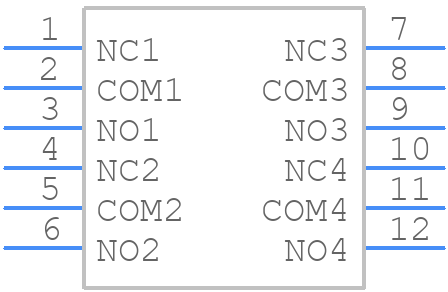

Use the download button to access the TL4201EEXA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL420,
or try a keyword search, such as Pushbutton Switches
