E-Switch provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues. You can find these resources on the E-Switch website or by contacting their technical support.
Debouncing is crucial to prevent multiple triggers from a single switch press. You can use external debouncing circuits, such as an RC filter or a dedicated debouncing IC, or implement debouncing in your firmware using techniques like timer-based debouncing or edge detection.
The TL4201EEYA is rated for operation between -20°C to 70°C. Operating outside this range may affect its performance, reliability, and lifespan. It's essential to ensure your design stays within this temperature range to guarantee optimal switch performance.
While the TL4201EEYA is a robust switch, it's essential to evaluate its suitability for high-vibration or high-shock environments. You may need to consider additional mounting or securing mechanisms to prevent switch damage or malfunction. Consult with E-Switch or a mechanical engineer to determine the best approach for your specific application.
Regular cleaning and maintenance are crucial to prevent contamination and ensure the switch's reliability. Use a soft brush or compressed air to remove debris, and avoid using harsh chemicals or solvents that may damage the switch. Refer to E-Switch's guidelines for cleaning and maintenance recommendations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL4201EEYA Overview

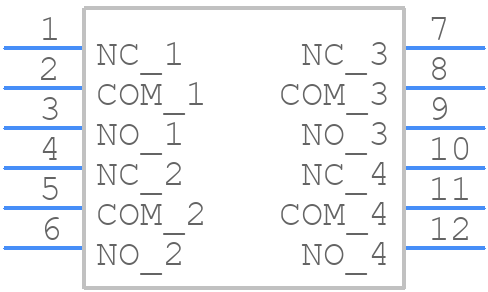

Use the download button to access the TL4201EEYA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL420,
or try a keyword search, such as Pushbutton Switches
