A good PCB layout for the TL4242QKTTRQ1 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and keeping the switching node (SW) away from sensitive nodes can help reduce EMI.
The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 2.2 μH for the TL4242QKTTRQ1). Then, adjust the value based on the specific application requirements and efficiency goals.
The maximum ambient temperature for the TL4242QKTTRQ1 is 105°C. However, the device can operate up to 125°C with derating. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
Yes, the TL4242QKTTRQ1 is suitable for high-reliability applications. It's manufactured using a robust process, and Texas Instruments provides a thorough characterization and testing process to ensure the device meets the required standards.
To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a resistor (e.g., 10 kΩ). This enables the device and allows it to operate within the recommended voltage range. Additionally, ensure the input voltage (VIN) is within the specified range (2.7 V to 5.5 V).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL4242QKTTRQ1 Overview

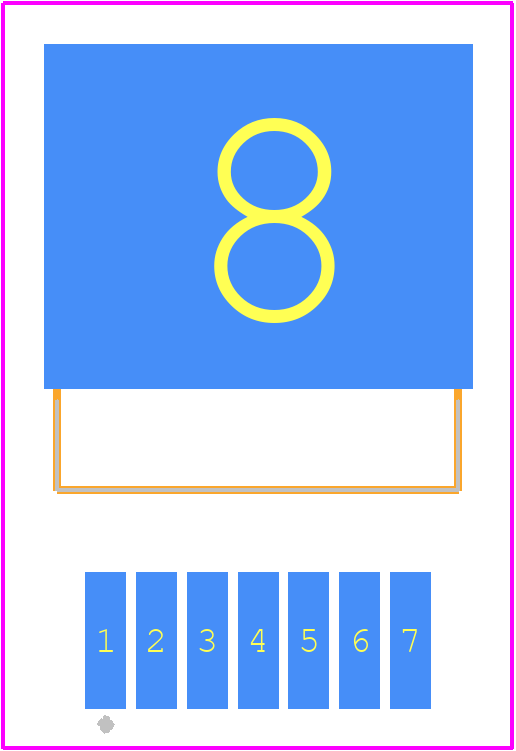

Use the download button to access the TL4242QKTTRQ1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TL424,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
