Part Image

TL431CDR2G - onsemi

Description: ON SEMICONDUCTOR - TL431CDR2G - Voltage Reference, Shunt - Adjustable, 2.495V to 36V, 2.2 % Ref, ± 50ppm/°C, SOIC-8

Download ECAD Model

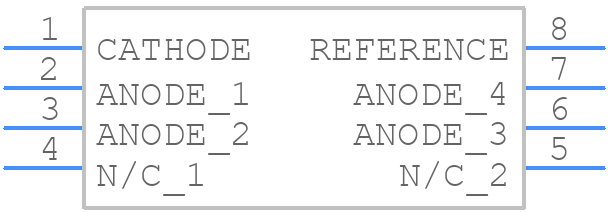

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TL431CDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_8-+-+
click to zoom

3D Models

TL431CDR2G - onsemi  - 3D model - Small Outline Packages - SOIC_8-+-+
click to zoom

TL431CDR2G Details

  • Manufacturer Part Number:

    TL431CDR2G

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • Risk Rank:

    0.69

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • YTEOL:

    6.5

  • Additional Feature:

    OUTPUT VOLTAGE PROGRAMMABLE FROM 2.495V TO 36V

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    2.567 V

  • Output Voltage-Min:

    2.423 V

  • Output Voltage-Nom:

    2.495 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Voltage References

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    2.495 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    97.338 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    3.9 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

TL431CDR2G Overview

Use the download button to access the TL431CDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL431, or try a keyword search, such as Voltage References

Parts related to TL431CDR2G

Showing 0 results

TL431CDR2G Alternates

Showing results

Image Part Number Model
Part Image TL431IDT STMicroelectronics

Adjustable micropower shunt voltage reference

Part Image TL431CDRG4 Rochester Electronics LLC

Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDSO8, GREEN, PLASTIC, SOIC-8

Part Image TL431IDR2G Rochester Electronics LLC

Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDSO8, LEAD FREE, PLASTIC, SOIC-8

Part Image TL431CDR Rochester Electronics LLC

Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDSO8, GREEN, PLASTIC, SOIC-8

Part Image TL431CDR2G Rochester Electronics LLC

Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDSO8, LEAD FREE, PLASTIC, SOIC-8

For a full list of alternate parts for TL431CDR2G, check out Findchips.com
