Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also consider the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) values. Additionally, adding a small ceramic capacitor (e.g. 10nF) between the Vout pin and GND can help to improve stability.
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 12V or lower to ensure reliable operation and to prevent damage to the IC.
The TL499ACPE4 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to prevent thermal shutdown and ensure reliable operation.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the output capacitor's ESL, Cout is the output capacitance, and fsw is the switching frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL499ACPE4 Overview

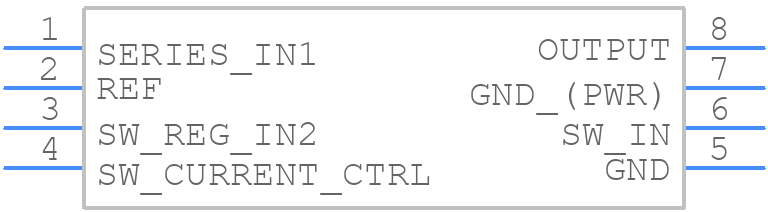

Use the download button to access the TL499ACPE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL499,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
