The recommended termination impedance is 50 ohms, which is a standard impedance for most oscillators.
Use a hot air reflow soldering process or a controlled hand-soldering technique to ensure proper soldering. Apply a small amount of solder paste to the pads and use a soldering iron with a fine tip to avoid overheating the component.
The maximum operating temperature range for the TL602-024.576M is -40°C to +85°C. However, it's recommended to operate within a narrower range (e.g., 0°C to +70°C) for optimal performance and reliability.
While the TL602-024.576M is designed to be rugged, it's still important to ensure proper mounting and securing of the component to the PCB to minimize the effects of vibration. Consider using a vibration-dampening material or a shock-absorbing mount to reduce the impact of vibrations.
Start by verifying the power supply voltage and ensuring it's within the recommended range. Check the oscillator's output frequency and amplitude using an oscilloscope. If issues persist, consult the datasheet and application notes or contact Connor-Winfield's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL602-024.576M Overview

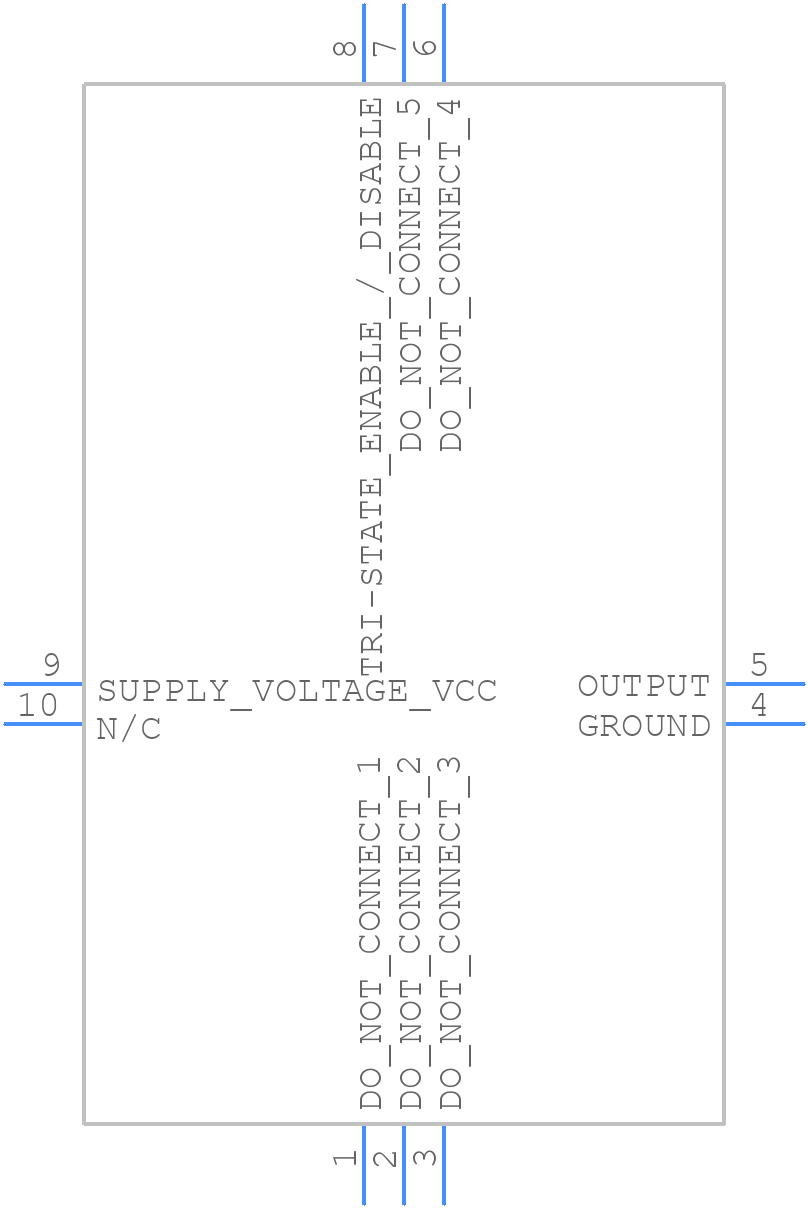

Use the download button to access the TL602-024.576M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL602,
or try a keyword search, such as TCXO
