TL7726QDG4 - Texas Instruments

Description: Power Management Specialized - PMIC Hex Clamping Circuit

Download TL7726QDG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

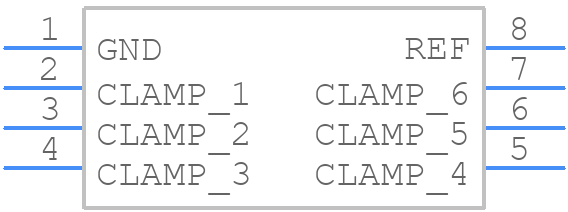

TL7726QDG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL7726QDG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
TL7726QDG4 - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

TL7726QDG4 Details

  • Manufacturer Part Number:

    TL7726QDG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TL7726QDG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal relief pattern to ensure good heat dissipation. A 4-layer PCB with a solid ground plane is also recommended.
  • To ensure stable output voltage regulation, it's essential to use a high-quality output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF). Additionally, the input capacitor should be placed close to the device and have a low ESR.
  • Although the datasheet specifies a maximum input voltage of 15V, it's recommended to limit the input voltage to 12V to ensure reliable operation and prevent damage to the device.
  • To protect the device from overcurrent conditions, it's recommended to add an external current limiting resistor or a fuse in series with the input voltage. Additionally, the device has a built-in overcurrent protection feature that will limit the output current to a safe value.
  • The recommended operating temperature range for the TL7726QDG4 is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure good thermal design and heat dissipation to maintain reliable operation.
