TLA-6T127LF - TDK

Description: Audio Transformers / Signal Transformers 10/100BASE-TX PT*2 CMC*2

Download TLA-6T127LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

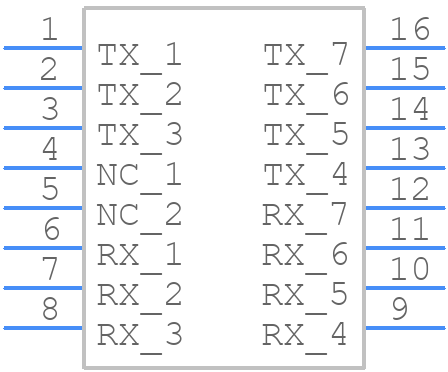

Symbol
TLA-6T127LF - TDK - PCB symbol
click to zoom
PCB Footprints
TLA-6T127LF - TDK PCB footprint - Small Outline Packages - Small Outline Packages - TLA-6T127LF
click to zoom
3D Models
TLA-6T127LF - TDK - 3D model - Small Outline Packages - TLA-6T127LF
click to zoom

TLA-6T127LF Details

  • Manufacturer Part Number:

    TLA-6T127LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    COMMON MODE CHOKE AVAILABLE

  • Application:

    10/100 BASE-TX; ETHERNET

  • Height:

    5.65 mm

  • Isolation Voltage:

    1500 V

  • JESD-609 Code:

    e3

  • Length:

    11.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Packing Method:

    BULK

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT; 1CT:1CT

  • Width:

    6.8 mm

TLA-6T127LF Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a solid ground plane, and the component should be placed near the edge of the board to minimize radiation. A minimum of 1mm clearance around the component is recommended to prevent electromagnetic interference.
  • The TLA-6T127LF is designed to suppress high-frequency noise and EMI. It has a built-in EMI filter that reduces electromagnetic radiation and noise, making it suitable for use in high-frequency applications.
  • The TLA-6T127LF can operate safely within a temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • Yes, the TLA-6T127LF is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • TDK recommends storing the TLA-6T127LF in a dry, cool place, away from direct sunlight and moisture. The component should be handled with care to prevent mechanical stress and damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLA-6T127LF Overview

Use the download button to access the TLA-6T127LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLA-6, or try a keyword search, such as Pulse/Datacom Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
