TLA-6T133WLF-T footprint, schematic symbol and 3D model by TDK

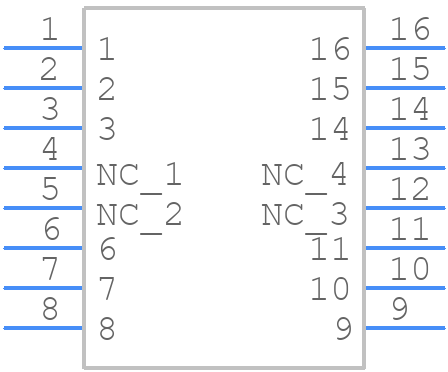

Symbol

click to zoom

PCB Footprints

TLA-6T133WLF-T - TDK PCB footprint - Other - Other - TLA-6T133WLF-T-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLA-6T133WLF-T
Part Number TLA-6T133WLF-T
Manufacturer TDK
Pin Count 16
Part Category Transformer
Package Category Other
Footprint Name Other - TLA-6T133WLF-T-1
Released Date Jun 19, 2025
Last Modified Date Jun 19, 2025 9:08 AM UTC
Pinout / Pin List Click Here (Member Only)

TLA-6T133WLF-T Details

Manufacturer Part Number:
TLA-6T133WLF-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
LEAD FREE
ECCN Code:
EAR99
Manufacturer:
TDK Corporation
YTEOL:
0
Application:
GENERAL PURPOSE
Height:
5.9 mm
Isolation Voltage:
1500 V
Length:
11.6 mm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TAPE & REEL
Primary Inductance:
350 µH
Surface Mount:
YES
Transformer Type:
DATACOM TRANSFORMER
Turns Ratio (Np:Ns):
1CT:1CT
Width:
6.8 mm

TLA-6T133WLF-T Frequently Asked Questions (FAQs)

The recommended land pattern for TLA-6T133WLF-T is a rectangular pad with a size of 3.2mm x 1.6mm, with a solder mask opening of 2.8mm x 1.2mm.
To handle thermal considerations, ensure a good thermal connection to a heat sink or a large copper area on the PCB. The thermal resistance of the inductor should be minimized to prevent overheating.
The maximum current rating for TLA-6T133WLF-T is 13A, but it's recommended to derate the current based on the operating temperature and other environmental factors.
Yes, TLA-6T133WLF-T is suitable for high-frequency applications up to 1MHz. However, the inductor's impedance and core losses should be considered in the design.
To ensure reliability in a humid environment, apply a conformal coating to the inductor and follow the recommended storage and handling procedures to prevent moisture absorption.

Trust Checks

Community Provided

System Verified

Community Approved

TLA-6T133WLF-T Overview

Use the download button to access the TLA-6T133WLF-T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLA-6, or try a keyword search, such as Pulse/Datacom Transformers
