SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Min:
9.5 V/us
Slew Rate-Nom:
16 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
5 mA
Supply Voltage Limit-Max:
17 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
10000
Voltage Gain-Min:
100000
Wideband:
NO
Width:
3 mm
TLC073IDGQR Frequently Asked Questions (FAQs)
It is recommended to follow a star topology for the power supply connections, keep analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, use short and direct traces for the input and output signals, and avoid crossing signal lines over each other.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. For optimal performance, configure the device in the desired mode (e.g., 8-bit or 10-bit) by setting the appropriate pins (e.g., MODE, INL, and INH) according to the datasheet.
The TLC073IDGQR has a maximum junction temperature of 150°C. To ensure reliable operation, provide adequate heat sinking, keep the device away from heat sources, and avoid high ambient temperatures. Use thermal pads or heat sinks if necessary, and ensure good airflow around the device.
To troubleshoot issues, first verify the power supply and biasing are correct. Check the input signals and ensure they are within the specified range. Use an oscilloscope to monitor the output signals and verify they match the expected values. If issues persist, consult the datasheet and application notes for guidance, or contact Texas Instruments support for further assistance.
To minimize EMI, use a multi-layer PCB with a solid ground plane, and keep the TLC073IDGQR away from high-frequency signal lines. Use shielded cables or twisted pairs for input and output signals, and avoid running signal lines parallel to each other. Additionally, use EMI-absorbing materials or shielding cans if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC073IDGQR Overview

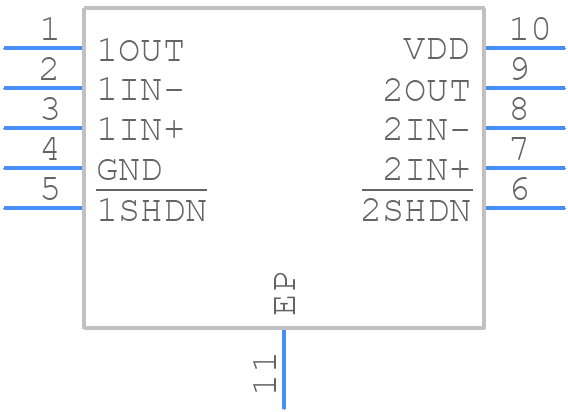

Use the download button to access the TLC073IDGQR schematic symbol, PCB footprint, and 3D model.
