The maximum power dissipation of TLC2202ACD is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
The gain resistor values for TLC2202ACD can be chosen using the formula: Rf/Ri = (Vout/Vin) - 1, where Rf is the feedback resistor, Ri is the input resistor, Vout is the output voltage, and Vin is the input voltage. The values of Rf and Ri should be chosen to ensure stability and desired gain.
The input impedance of TLC2202ACD is typically around 10^12 ohms in parallel with 10pF, making it suitable for high-impedance sources.
Yes, TLC2202ACD can be used as a comparator by connecting the inverting input to a reference voltage and the non-inverting input to the signal to be compared. However, it's essential to ensure that the input common-mode voltage range is within the specified limits.
To reduce noise and oscillations in TLC2202ACD circuits, use proper PCB layout techniques, decouple the power supply with capacitors, and add a noise filter or a ferrite bead to the output. Additionally, ensure that the gain is set correctly, and the feedback network is properly designed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC2202ACD Overview

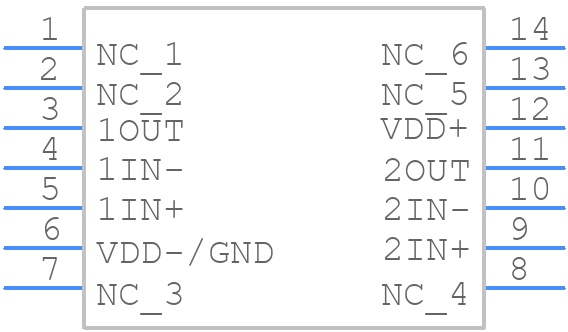

Use the download button to access the TLC2202ACD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC22,
or try a keyword search, such as Operational Amplifiers
