TLC2262IDR - Texas Instruments

Description: Dual Advanced LinCMOS™ Rail-To-Rail Operational Amplifier

Download TLC2262IDR Model

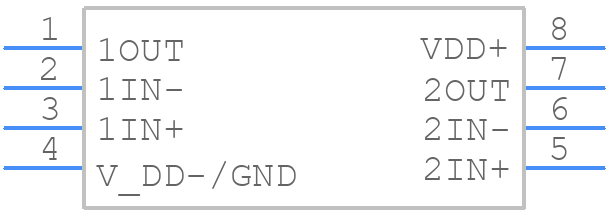

Schematic
