The maximum power dissipation of the TLC2272QPWRG4Q1 is 670 mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability in a unity-gain configuration, add a 10-22 nF capacitor between the output and the inverting input pins (pins 1 and 2) to compensate for the internal pole. This capacitor helps to reduce the phase shift and prevent oscillations.
For optimal performance, use a symmetrical layout, keep the input and output traces short, and avoid running digital signals near the op-amp. Use a ground plane and decouple the power supply pins (VCC and GND) with 0.1 μF capacitors. Additionally, consider using a guard ring around the op-amp to reduce noise and electromagnetic interference (EMI).
While the TLC2272QPWRG4Q1 can be used as a comparator, it's not the most suitable choice. The op-amp is designed for linear applications, and its output stage is not optimized for high-speed switching. For comparator applications, consider using a dedicated comparator IC, such as the LM339 or TLC393, which are designed for high-speed switching and have built-in hysteresis.
The TLC2272QPWRG4Q1 has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. Use an anti-static wrist strap or mat, and ensure that the PCB and components are properly grounded during assembly. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to protect the op-amp and other sensitive components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC2272QPWRG4Q1 Overview

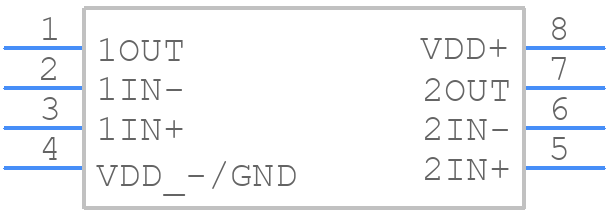

Use the download button to access the TLC2272QPWRG4Q1 schematic symbol, PCB footprint, and 3D model.
