A good PCB layout for the TLC2272QPWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for power supply decoupling and to keep the input and output traces short and direct.
To ensure the TLC2272QPWRQ1 operates within its recommended operating conditions, it's essential to maintain a power supply voltage between 2.7V and 5.5V, and an operating temperature between -40°C and 125°C. Additionally, it's recommended to use a voltage regulator to regulate the power supply voltage and to provide adequate heat sinking to prevent overheating.
The TLC2272QPWRQ1 is a general-purpose op-amp suitable for a wide range of applications, including audio amplification, signal conditioning, and sensor interfaces. When choosing an op-amp, consider factors such as gain bandwidth, slew rate, noise, and power consumption. For specific applications, consider the required gain, input impedance, and output drive capability.
To troubleshoot common issues with the TLC2272QPWRQ1, start by checking the PCB layout and ensuring that the device is properly decoupled and bypassed. Verify that the power supply voltage is within the recommended range and that the device is not overheating. Check for oscillations or instability by monitoring the output signal with an oscilloscope, and adjust the compensation capacitors or feedback resistors as needed.
To minimize EMI when laying out the TLC2272QPWRQ1 on a PCB, keep the analog and digital circuits separate, use a solid ground plane, and avoid running analog and digital traces parallel to each other. Use shielding or guard rings to enclose sensitive analog circuits, and consider using a PCB with a built-in EMI shield.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC2272QPWRQ1 Overview

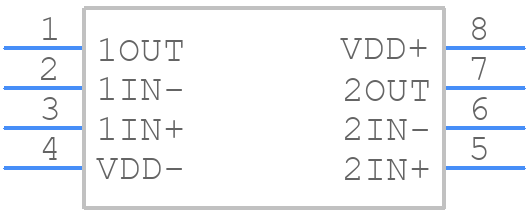

Use the download button to access the TLC2272QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
