Mainland China, Malaysia, Mexico, Philippines, Taiwan
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Date Of Intro:
1989-03-01
Manufacturer:
Texas Instruments
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.00015 µA
Bias Current-Max (IIB) @25C:
0.00006 µA
Common-mode Reject Ratio-Min:
75 dB
Common-mode Reject Ratio-Nom:
75 dB
Frequency Compensation:
YES
Input Offset Current-Max (IIO):
0.00006 µA
Input Offset Voltage-Max:
2500 µV
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
8.65 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
NO
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-16 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
4
Number of Terminals:
14
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUT LINE
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Slew Rate-Min:
1.7 V/us
Slew Rate-Nom:
3.6 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
6 mA
Supply Voltage Limit-Max:
16 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
2180
Voltage Gain-Min:
25000
Wideband:
NO
Width:
3.9 mm
TLC2274IDG4 Frequently Asked Questions (FAQs)
Texas Instruments recommends a star-ground configuration for the op-amp inputs and outputs, with the ground pin connected to a solid ground plane. Additionally, it's recommended to keep the input and output traces short and away from noise sources, and to use a decoupling capacitor between the power supply pins and ground.
The TLC2274IDG4 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an anti-static bag, and avoiding touching the pins or leads.
The TLC2274IDG4 is rated for operation from -40°C to 125°C, but the device's performance may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
Yes, the TLC2274IDG4 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to consult with Texas Instruments' application engineers to ensure the device meets the specific requirements of your application.
The power dissipation of the TLC2274IDG4 can be calculated using the formula Pd = (Vcc x Icc) + (Vee x Iee), where Vcc and Vee are the supply voltages, and Icc and Iee are the supply currents. The maximum power dissipation is specified in the datasheet as 500 mW.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC2274IDG4 Overview

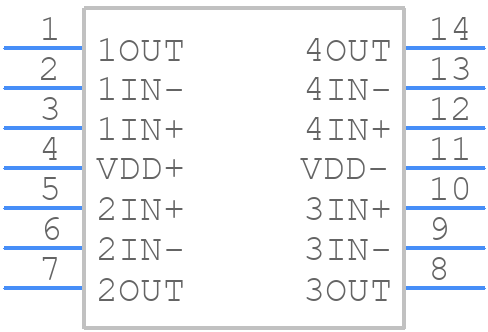

Use the download button to access the TLC2274IDG4 schematic symbol, PCB footprint, and 3D model.
