TLC2274QPWRQ1 - Texas Instruments

Description: Automotive advanced LinCMOS™ rail-to-rail quad operational amplifier

Download TLC2274QPWRQ1 Model

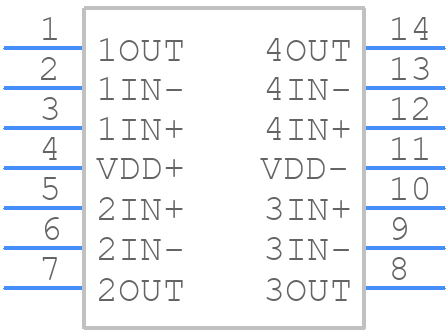

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC2274QPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
TLC2274QPWRQ1 - Texas Instruments  - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

TLC2274QPWRQ1 Details

  • Manufacturer Part Number:

    TLC2274QPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0008 µA

  • Bias Current-Max (IIB) @25C:

    0.00006 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00006 µA

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Min:

    1.7 V/us

  • Slew Rate-Nom:

    3.6 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    6 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2180

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    4.4 mm

TLC2274QPWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
  • The output capacitor should be chosen based on the desired output voltage ripple, output current, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10uF to 100uF, with a voltage rating of at least 2x the output voltage. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
  • The TLC2274QPWRQ1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the device is operated within its recommended operating conditions.
  • Yes, the TLC2274QPWRQ1 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to follow the specific requirements and guidelines for the target application, and to ensure that the device is operated within its recommended operating conditions.
  • The TLC2274QPWRQ1 has a specific power-up and power-down sequence that should be followed to ensure proper operation. The device should be powered up with a slow ramp-up of the input voltage, and powered down by slowly ramping down the input voltage. The datasheet provides more detailed information on the recommended power-up and power-down sequences.
