TLC2652AMJB - Texas Instruments

Description: OP Amp Single GP ±8V/16V 14-Pin CDIP Tube

Download TLC2652AMJB Model

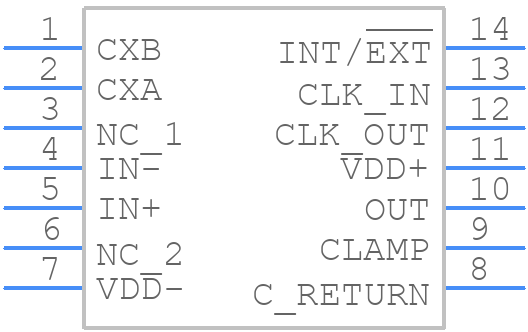

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

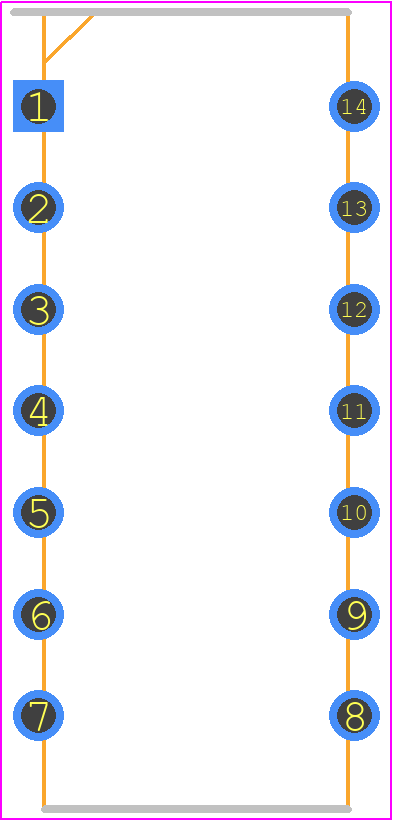

TLC2652AMJB - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J(R-GDIP-T14)
click to zoom
3D Models
TLC2652AMJB - Texas Instruments  - 3D model - Ceramic Dual-In-Line Packages - J(R-GDIP-T14)
click to zoom

TLC2652AMJB Details

  • Manufacturer Part Number:

    TLC2652AMJB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Average Bias Current-Max (IIB):

    0.0005 µA

  • Bias Current-Max (IIB) @25C:

    0.00006 µA

  • Common-mode Reject Ratio-Min:

    120 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00006 µA

  • Input Offset Voltage-Max:

    3 µV

  • JESD-30 Code:

    R-GDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.56 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.08 mm

  • Slew Rate-Min:

    1.3 V/us

  • Slew Rate-Nom:

    2.8 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1900

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    7.62 mm

TLC2652AMJB Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents latch-up or damage to the device.
  • To ensure maximum output voltage swing, the output should be terminated with a load resistance of 1 kΩ or higher. Additionally, the output voltage swing can be increased by using a higher supply voltage (VCC) up to 16V.
  • The TLC2652AMJB can drive capacitive loads up to 100 pF without oscillation or instability. However, it's recommended to use a series resistor (Rs) to limit the output current and prevent damage to the device.
  • To reduce noise and oscillations, use a bypass capacitor (CBYP) between VCC and GND, and a decoupling capacitor (CDEC) between VREF and GND. Additionally, use a low-ESR capacitor for CBYP and CDEC, and keep the layout as compact as possible to minimize parasitic inductance.
  • The TLC2652AMJB has a thermal derating of 13.9 mW/°C above 25°C. This means that the maximum power dissipation decreases by 13.9 mW for every degree Celsius above 25°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC2652AMJB Overview

Use the download button to access the TLC2652AMJB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC26, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TLC2652AMJB

Showing 0 results

TLC2652AMJB Alternates

Showing results

Image Part Number Model
Part Image 5962-9089503MCA Texas Instruments

Operational Amplifier, 1 Func, 3uV Offset-Max, CMOS, CDIP14

Part Image 5962-9089503MCX Texas Instruments

Operational Amplifier, 1 Func, 8uV Offset-Max, CMOS, CDIP14
