The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper device operation and prevents latch-up.
To ensure maximum output voltage swing, the output should be terminated with a load resistance of 1 kΩ or higher. Additionally, the output voltage swing can be maximized by using a pull-up or pull-down resistor to VCC or GND, respectively.
The TLC2654CP can drive capacitive loads up to 100 pF. However, it's recommended to limit the capacitive load to 50 pF or less to ensure stable operation and prevent oscillations.
To reduce noise and oscillations, use a low-pass filter at the input, keep the input traces short and well-shielded, and use a decoupling capacitor (e.g., 0.1 μF) between VCC and GND. Additionally, consider using a ferrite bead or a series resistor at the output to dampen oscillations.
To minimize EMI and noise, use a star-ground configuration, keep the analog and digital grounds separate, and use a solid ground plane. Route the input and output traces away from each other and from the power supply traces. Use a shielded enclosure and consider using a common-mode choke or a ferrite bead on the output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC2654CP Overview

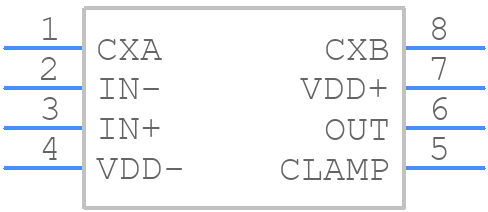

Use the download button to access the TLC2654CP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC26,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
