TLC2654I-8D - Texas Instruments

Description: Low-Noise Chopper-Stabilized Operational Amplifier

Download TLC2654I-8D Model

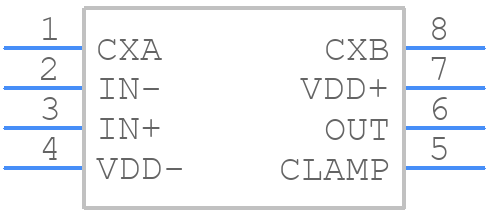

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC2654I-8D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TLC2654I-8D - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

TLC2654I-8D Details

  • Manufacturer Part Number:

    TLC2654I-8D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.00006 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00006 µA

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1.2 V/us

  • Slew Rate-Nom:

    2.8 V/us

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1900

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3.9 mm

TLC2654I-8D Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper device operation and prevents latch-up.
  • To ensure maximum output voltage swing, the output should be terminated with a load resistance of 1 kΩ or higher. Additionally, the output voltage swing can be increased by using an external pull-up resistor to VCC.
  • The TLC2654I-8D can drive capacitive loads up to 100 pF. However, it's recommended to limit the capacitive load to 50 pF or less to ensure stable operation and prevent oscillations.
  • To reduce noise and oscillations, use a low-pass filter at the input, keep the input traces short and well-shielded, and use a decoupling capacitor (e.g., 0.1 μF) between VCC and GND. Additionally, consider using a ferrite bead or a series resistor at the output to dampen oscillations.
  • To minimize EMI and noise, use a star-ground configuration, keep the analog and digital grounds separate, and use a solid ground plane. Route the input and output traces away from each other and from the power supply lines. Use a shielded enclosure and consider using a ground plane on the PCB to reduce radiation.
