TLC2932IPWRG4 - Texas Instruments

Description: Phase Locked Loops - PLL PHASE LOCKED LOOP

Download TLC2932IPWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

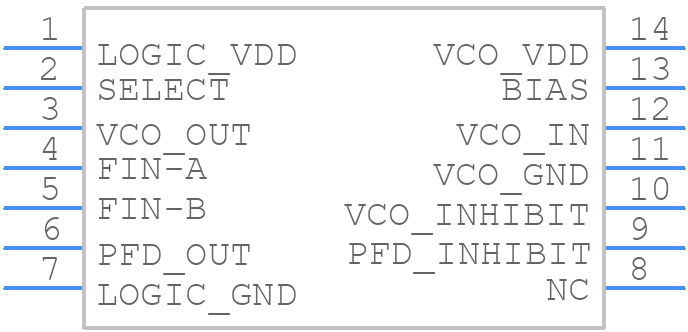

TLC2932IPWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC2932IPWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
TLC2932IPWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

TLC2932IPWRG4 Details

  • Manufacturer Part Number:

    TLC2932IPWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRE 3V SUPPLY

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5.1 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.5 mm

TLC2932IPWRG4 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of TLC2932IPWRG4 is 100 MHz, but it can be limited by the load capacitance and the output current.
  • To minimize the impact of noise and EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The recommended power-on sequence is to apply VCC first, followed by the input signal. This ensures that the internal biasing circuitry is properly established before the input signal is applied.
  • Yes, TLC2932IPWRG4 can be used as a level shifter for 5V to 3.3V conversion. However, ensure that the input signal is within the recommended input voltage range (VCC - 1.5V to VCC + 0.5V) and that the output current is within the specified limit (±24 mA).
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. The device has a thermal shutdown feature that will turn off the output if the junction temperature exceeds 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC2932IPWRG4 Overview

Use the download button to access the TLC2932IPWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC29, or try a keyword search, such as PLL or Frequency Synthesis Circuits
