TLC320AC01CFN footprint, schematic symbol and 3D model by Texas Instruments

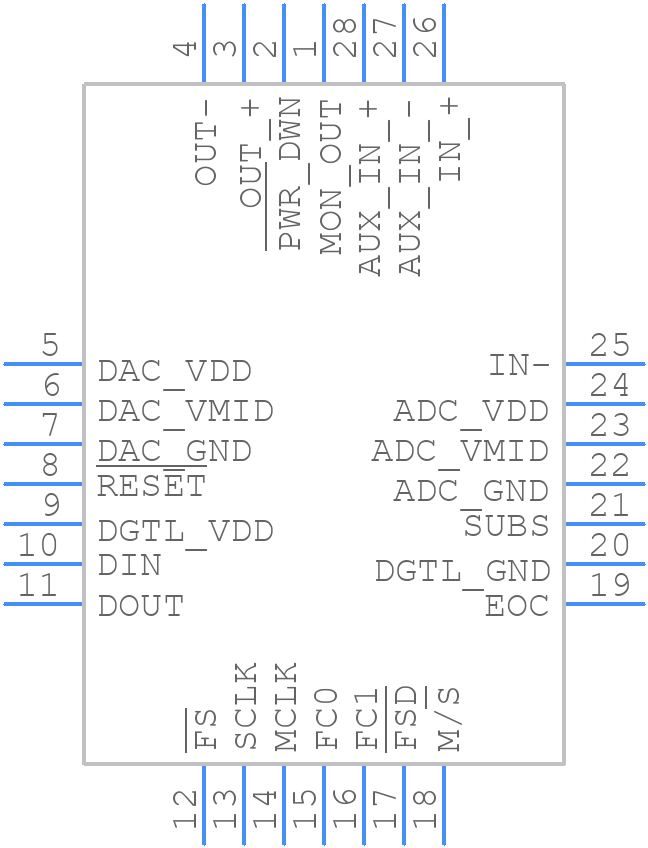

Symbol

click to zoom

PCB Footprints

TLC320AC01CFN - Texas Instruments PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - TLC320AC01CFN

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLC320AC01CFN
Part Number TLC320AC01CFN
Manufacturer Texas Instruments
Pin Count 28
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - TLC320AC01CFN
Released Date Sep 2, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLC320AC01CFN Details

Manufacturer Part Number:
TLC320AC01CFN
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
QLCC
Pin Count:
28
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-PQCC-J28
JESD-609 Code:
e4
Length:
11.5062 mm
Moisture Sensitivity Level:
4
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC28,.5SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
4.57 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
11.5062 mm

TLC320AC01CFN Frequently Asked Questions (FAQs)

The recommended power-on sequence is to apply VCC first, followed by AVCC, and then the analog input signal. This ensures proper device operation and prevents damage.
To optimize for low noise performance, use a low-noise power supply, decouple the power pins with 0.1uF capacitors, and keep the analog input signal away from digital signals. Additionally, use a low-pass filter at the output to filter out high-frequency noise.
The maximum input signal amplitude that the TLC320AC01CFN can handle is 3.5Vpp differential. Exceeding this amplitude may result in signal distortion or device damage.
Yes, the TLC320AC01CFN can be used in a single-ended configuration, but it is not recommended as it may compromise the device's noise performance and common-mode rejection ratio (CMRR).
To ensure the TLC320AC01CFN is in a stable operating condition during power-up, apply a slow ramp-up of the power supply voltage (VCC) to prevent voltage spikes and ensure that the device is fully powered up before applying the analog input signal.

Trust Checks

Community Provided

System Verified

Community Approved

TLC320AC01CFN Overview

Use the download button to access the TLC320AC01CFN schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLC32, or try a keyword search, such as Other Signal Circuits
