TLC320AD50CDW - Texas Instruments

Description: Audio Codec 1ADC / 1DAC 16bit 28-Pin SOIC Tube

Download TLC320AD50CDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

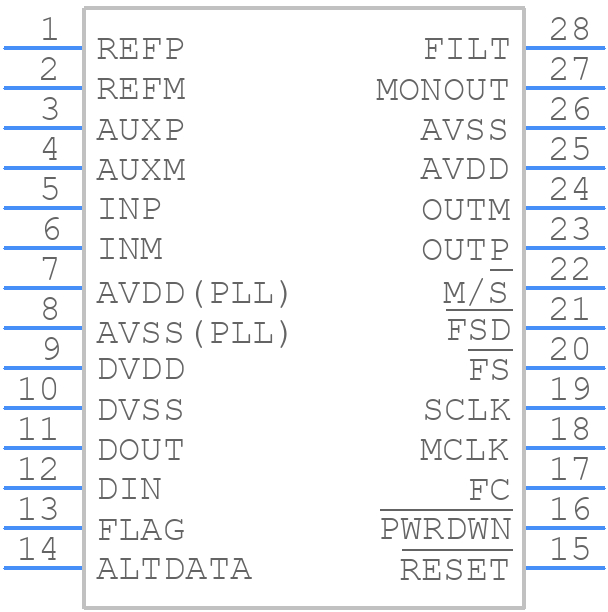

TLC320AD50CDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC320AD50CDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
TLC320AD50CDW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

TLC320AD50CDW Details

  • Manufacturer Part Number:

    TLC320AD50CDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CAN ALSO OPERATE FROM 2.7V TO 3.3V SUPPLY WITH 3V NOMINAL

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLC320AD50CDW Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signal. This ensures proper device operation and prevents latch-up.
  • Optimization depends on the specific application requirements. Consider factors such as input signal frequency, amplitude, and noise level. Adjust the ADC's gain, offset, and sampling rate accordingly. Consult the datasheet and application notes for guidance.
  • The maximum clock frequency for the TLC320AD50CDW's serial interface is 20 MHz. Exceeding this frequency may result in data corruption or device malfunction.
  • The TLC320AD50CDW outputs 16-bit data in two's complement format. Ensure your microcontroller or digital system can handle this format. You may need to perform sign extension or byte swapping depending on your system's requirements.
  • The TLC320AD50CDW's latency is approximately 2.5 clock cycles. This latency may impact your system's performance, especially in real-time applications. Consider this latency when designing your system's timing and synchronization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC320AD50CDW Overview

Use the download button to access the TLC320AD50CDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC32, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
