TLC34058-110FN - Texas Instruments

TLC34058-110FN Details

• Manufacturer Part Number:

  TLC34058-110FN

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

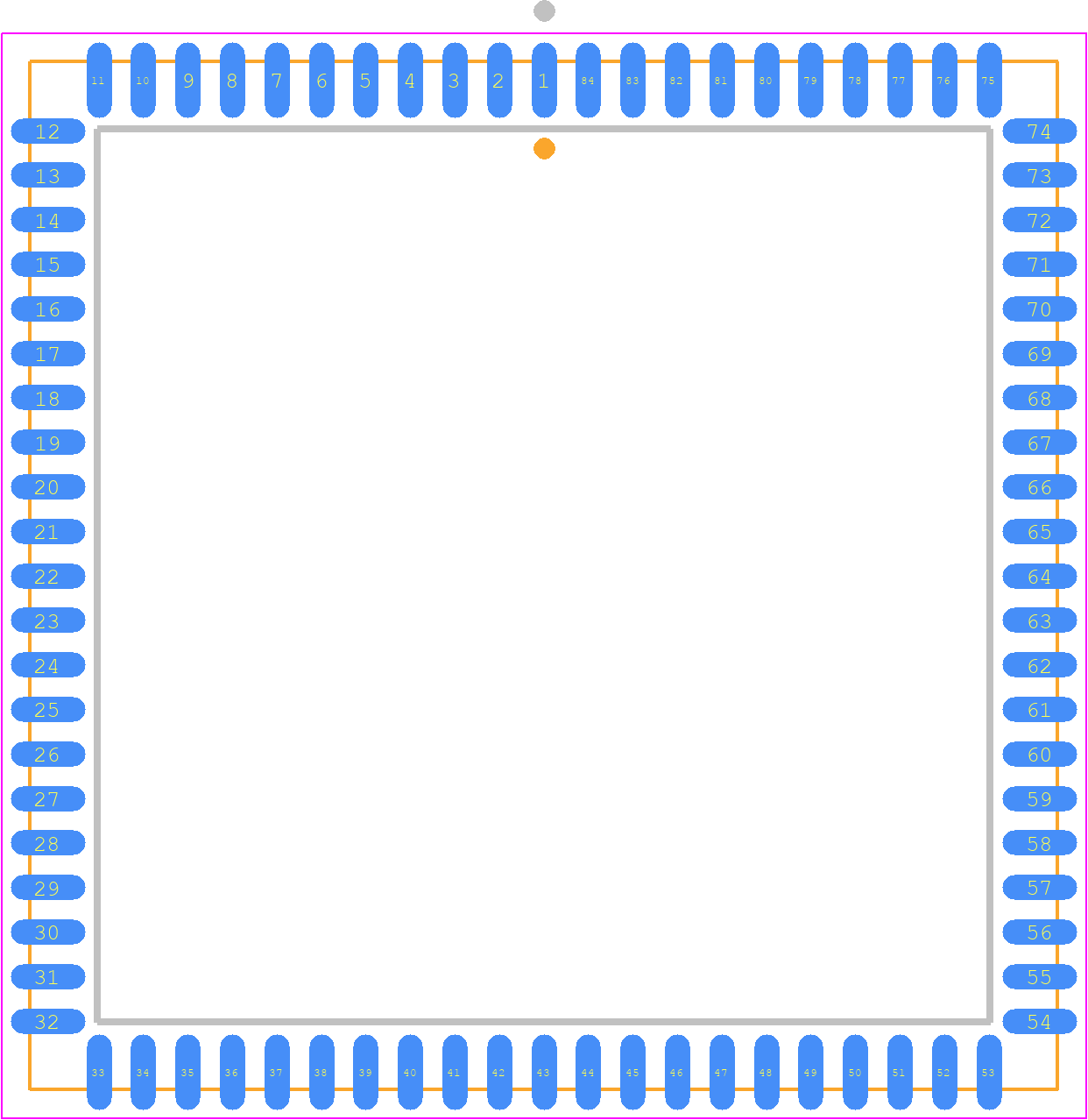

• Part Package Code:

  LCC

• Package Description:

  PLASTIC, QCC-84

• Pin Count:

  84

• ECCN Code:

  3A001.a.3

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  2

• Clock Frequency-Max:

  110 MHz

• Display Configuration:

  1280 X 1024 PIXELS

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQCC-J84

• Length:

  29.3116 mm

• Number of Terminals:

  84

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  29.3116 mm

• uPs/uCs/Peripheral ICs Type:

  DISPLAY CONTROLLER, PALETTE DAC
