TLC354CD - Texas Instruments

Description: Texas Instruments TLC354CD Comparator, Open Drain O/P, 650ns 1.4 → 16 V 14-Pin SOIC

Download TLC354CD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

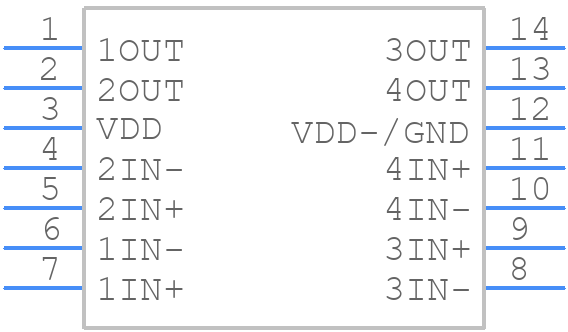

TLC354CD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC354CD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
TLC354CD - Texas Instruments - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

TLC354CD Details

  • Manufacturer Part Number:

    TLC354CD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bias Current-Max (IIB) @25C:

    0.02 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    650 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm
