Texas Instruments recommends following a star-grounding topology, keeping the analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
Verify that the supply voltage (VCC) is within the recommended range of 4.5V to 16V, and the input voltage (VIN) is within the recommended range of 0V to VCC. Also, ensure that the device is operated within the recommended temperature range of -40°C to 125°C.
The TLC3704CPW can operate up to 100 kHz, but the maximum frequency of operation depends on the specific application and the device's configuration. Higher frequencies can lead to increased power consumption, noise, and decreased accuracy.
Use an oscilloscope to monitor the input and output waveforms, and check for proper power supply decoupling, correct pin connections, and adequate heat sinking. Also, verify that the device is operated within its recommended operating conditions and that the input signals are within the specified ranges.
The TLC3704CPW is a commercial-grade device, but it can be used in high-reliability applications with proper design, testing, and validation. Texas Instruments provides relevant certifications and compliance information, such as AEC-Q100 qualification, in the device's datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3704CPW Overview

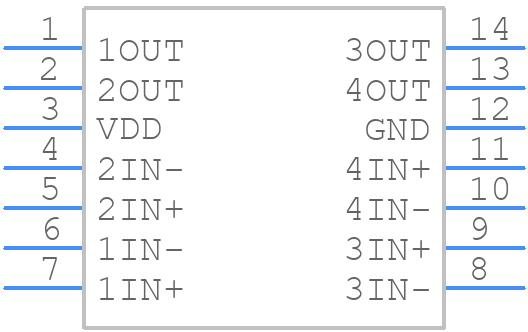

Use the download button to access the TLC3704CPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC37,
or try a keyword search, such as Comparators
