The recommended operating voltage range for TLC372MJGB is 4.5V to 16V, although it can operate up to 18V with reduced performance.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, connect the VREF pin to a stable voltage reference, and decouple it with a 0.1uF capacitor to ground.
The maximum output current of the TLC372MJGB is 20mA per channel, although it's recommended to limit the output current to 10mA per channel for optimal performance and reliability.
To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high power dissipation. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
For optimal performance, follow the recommended PCB layout guidelines, which include keeping the input and output traces short and separate, using a solid ground plane, and avoiding vias under the device. Also, use a symmetrical layout to minimize thermal gradients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC372MJGB Overview

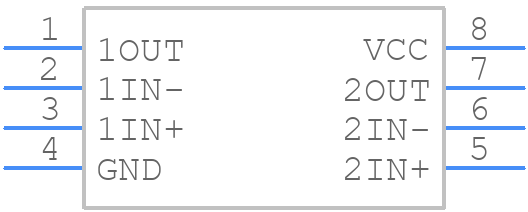

Use the download button to access the TLC372MJGB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC37,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
