Texas Instruments recommends following a star-grounding topology, keeping the analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
Monitor the power supply voltage to ensure it is within the recommended range of 4.5V to 16V. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C. Use thermal management techniques such as heat sinks or thermal pads to prevent overheating.
Use a series resistor (e.g., 1kΩ) to limit the input current and prevent damage to the device. Also, ensure the input signal is within the recommended voltage range of 0V to VCC. Use a buffer or voltage divider if necessary to condition the input signal.
Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage and ensure it is within the recommended range. Verify the input signals are within the recommended voltage range and that the device is properly configured. Consult the datasheet and application notes for troubleshooting guides.
Yes, the TLC372QD can be used in high-reliability or safety-critical applications. However, ensure you follow Texas Instruments' guidelines for reliability and safety, including using the device within its recommended operating conditions, following proper PCB design and layout practices, and implementing redundant or fail-safe mechanisms as necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC372QD Overview

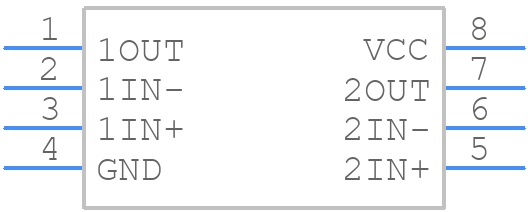

Use the download button to access the TLC372QD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC37,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
