TLC374CNE4 - Texas Instruments

Description: TEXAS INSTRUMENTS - TLC374CNE4 - Analogue Comparator, Differential, 4 Comparators, 200 ns, 3V to 16V, DIP, 14 Pins

Download TLC374CNE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

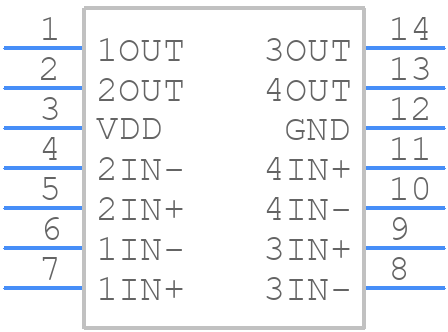

TLC374CNE4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC374CNE4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T14)
click to zoom
3D Models
TLC374CNE4 - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T14)
click to zoom

TLC374CNE4 Details

  • Manufacturer Part Number:

    TLC374CNE4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bias Current-Max (IIB) @25C:

    0.00003 µA

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    RAIL

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    650 ns

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TLC374CNE4 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TLC374CNE4 is 4.5V to 16V. However, it can operate up to 18V, but with reduced performance and reliability.
  • During power-up and power-down, it's essential to ensure that the output stage is not driven high or low until the supply voltage reaches the minimum operating voltage (4.5V). You can use a voltage supervisor or a power-good signal to control the output stage.
  • The maximum output current that TLC374CNE4 can handle is 250mA per channel. However, it's recommended to limit the output current to 100mA per channel for reliable operation and to prevent overheating.
  • To ensure that TLC374CNE4 operates within the specified temperature range (-40°C to 125°C), you should provide adequate heat sinking, use a thermally conductive package, and avoid operating the device near its maximum power dissipation rating.
  • The enable pin (EN) in TLC374CNE4 is used to enable or disable the output stage. When EN is high, the output stage is enabled, and when EN is low, the output stage is disabled, and the outputs are in a high-impedance state.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC374CNE4 Overview

Use the download button to access the TLC374CNE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC37, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
