TLC4502CDR - Texas Instruments

Description: Op Amp Dual Low Offset Voltage Amplifier R-R O/P ±3V/6V 8-Pin SOIC T/R

Download TLC4502CDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

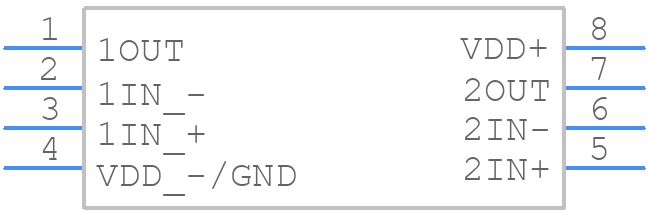

Symbol
TLC4502CDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC4502CDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TLC4502CDR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TLC4502CDR Details

  • Manufacturer Part Number:

    TLC4502CDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Average Bias Current-Max (IIB):

    0.00006 µA

  • Bias Current-Max (IIB) @25C:

    0.00006 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00006 µA

  • Input Offset Voltage-Max:

    100 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1 V/us

  • Slew Rate-Nom:

    2.5 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4700

  • Voltage Gain-Min:

    200000

  • Wideband:

    NO

  • Width:

    3.9 mm

TLC4502CDR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-connected layout for the TLC4502CDR, with the device at the center and the input and output traces radiating out from it. This helps to minimize noise and ensure proper operation. Additionally, it's recommended to keep the input and output traces as short as possible and to use a solid ground plane to reduce electromagnetic interference (EMI).
  • To handle high-frequency noise generated by the TLC4502CDR, it's recommended to use a low-pass filter or a ferrite bead in series with the output to filter out high-frequency noise. Additionally, using a decoupling capacitor between the supply pins and ground can help to reduce noise. It's also important to ensure that the PCB layout is designed to minimize noise radiation and coupling.
  • The TLC4502CDR has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, the TLC4502CDR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for use in industrial and medical applications that require high reliability.
  • To ensure the TLC4502CDR is properly powered and biased, it's recommended to use a stable power supply with a low output impedance. The device requires a single 5V supply, and it's recommended to use a decoupling capacitor between the supply pins and ground to reduce noise. Additionally, the input and output pins should be properly biased to ensure proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC4502CDR Overview

Use the download button to access the TLC4502CDR schematic symbol, PCB footprint, and 3D model.
