Part Image

TLC555IP-P2 - Texas Instruments

Description: TLC555IP-P2

Download TLC555IP-P2 Model

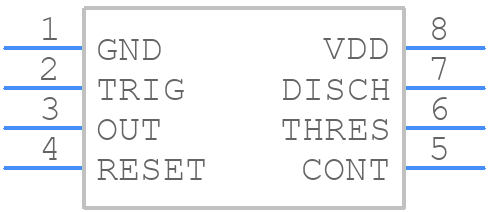

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC555IP-P2 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
TLC555IP-P2 - Texas Instruments  - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

TLC555IP-P2 Details

  • Manufacturer Part Number:

    TLC555IP-P2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    TIMER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.59 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    1.2 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TLC555IP-P2 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TLC555IP-P2 is typically around 2.1 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure stable operation, make sure to decouple the power supply with a 0.01 μF to 0.1 μF capacitor, use a stable clock signal, and keep the output load impedance within the recommended range.
  • No, the TLC555IP-P2 is a timer IC and not a voltage regulator. It's designed to generate a stable clock signal, not regulate voltage. Use a dedicated voltage regulator IC for voltage regulation.
  • The minimum supply voltage for the TLC555IP-P2 is 4.5 V, and the maximum supply voltage is 16 V. Operating the device outside this range may affect its performance and reliability.
  • The timing period of the TLC555IP-P2 can be calculated using the formula: T = 1.1 * R * C, where R is the resistance in ohms and C is the capacitance in farads.
