TLC5602CDW - Texas Instruments

Description: 8-Bit, 30-MSPS Digital-to-Analog Converter (DAC)

Download TLC5602CDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

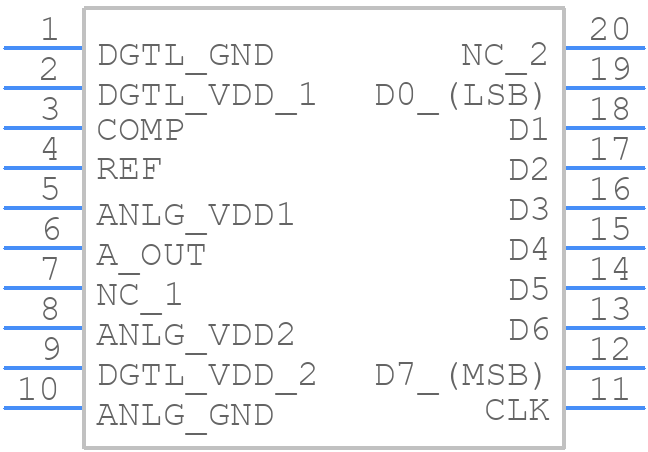

TLC5602CDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC5602CDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
TLC5602CDW - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

TLC5602CDW Details

  • Manufacturer Part Number:

    TLC5602CDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.265 V

  • Analog Output Voltage-Min:

    4.735 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.2%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    30 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    0.03 µs

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLC5602CDW Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents any potential latch-up conditions.
  • When using the TLC5602CDW as a comparator, the output voltage swing can be limited by adding a pull-up or pull-down resistor to the output pin. This helps to prevent the output from swinging to the supply rails and reduces power consumption.
  • The maximum input impedance of the TLC5602CDW is not explicitly stated in the datasheet, but it is typically in the range of 10 kΩ to 100 kΩ. This can be affected by the input bias current and the source impedance of the input signal.
  • While the TLC5602CDW is primarily designed as a comparator, it can be used as an op-amp with a gain greater than 1. However, the gain-bandwidth product is limited, and the device may not be stable at high gains. It's recommended to use a dedicated op-amp for high-gain applications.
  • To minimize power consumption, ensure that the input signals are within the recommended voltage range, and use a low-impedance output load. Additionally, consider using a lower supply voltage (e.g., 3.3 V instead of 5 V) and reducing the clock frequency if possible.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC5602CDW Overview

Use the download button to access the TLC5602CDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC56, or try a keyword search, such as Digital to Analog Converters
