Texas Instruments recommends a star-ground connection, with the analog and digital grounds separated and connected at a single point. Additionally, keep the analog and digital signal traces separate and avoid running them parallel to each other. Use a solid ground plane and decouple the power supply with a 0.1uF capacitor.
Use a buffer amplifier or an op-amp with a low output impedance to drive the TLC5602CDWR's input. Alternatively, add a series resistor (e.g., 1kΩ) and a capacitor (e.g., 10nF) in parallel to the input signal to form a low-pass filter, which helps to reduce signal attenuation.
The TLC5602CDWR can operate with clock frequencies up to 30 MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for specific guidance.
Use a high-quality, low-noise power supply and decouple the VCC pin with a 0.1uF capacitor. Additionally, ensure that the internal reference voltage is allowed to settle for at least 10ms after power-up before starting conversions. You can also use an external reference voltage if required.
Use the TLC5602CDWR's SYNC pin to synchronize conversions with an external clock or trigger signal. The SYNC pin can be connected to an external clock signal or a trigger signal, and the TLC5602CDWR will start a new conversion on the rising edge of the SYNC signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC5602CDWR Overview

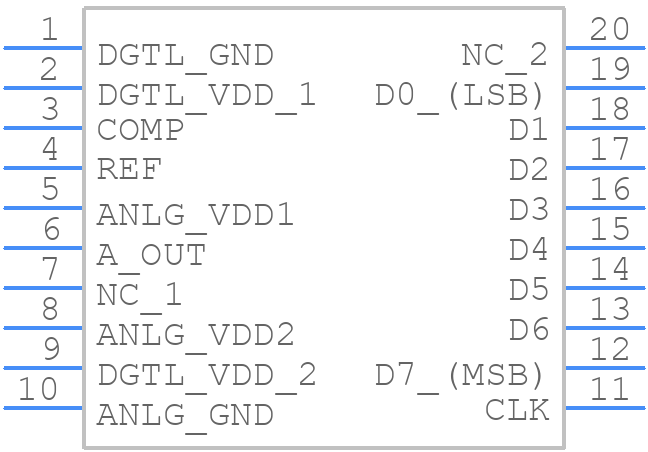

Use the download button to access the TLC5602CDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
