Texas Instruments recommends following a star-grounding topology, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to prevent crosstalk.
Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between VCC and GND, and place it as close to the device as possible. Additionally, use a separate power supply for the analog and digital sections, and ensure the power supply is clean and well-regulated.
While the datasheet specifies a maximum clock frequency of 20MHz, the actual maximum frequency depends on the specific application and layout. As a general rule, it's recommended to keep the clock frequency below 10MHz to ensure reliable operation and minimize noise.
The TLC5615CDGK has a limited output current of 30mA per channel. To handle this limitation, use an external buffer or amplifier to increase the output current, or use a lower-impedance load to reduce the current required.
Use a 3-wire serial interface (SCL, SDA, and CS) to program the internal registers. Ensure the CS pin is properly toggled to enter and exit programming mode, and use a reliable communication protocol to prevent data corruption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC5615CDGK Overview

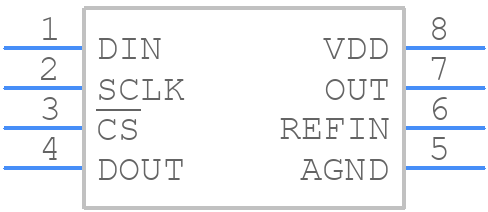

Use the download button to access the TLC5615CDGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
