TLC5615CDGKR - Texas Instruments

Description: Digital to Analog Converters - DAC 10-Bit 12.5 us DAC Serial Input Lo-Pwr

Download TLC5615CDGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

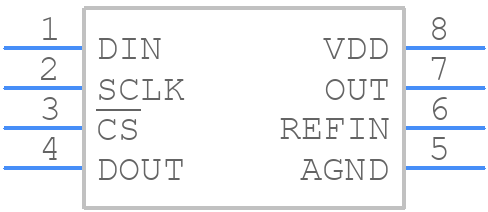

Symbol
TLC5615CDGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC5615CDGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK
click to zoom
3D Models
TLC5615CDGKR - Texas Instruments - 3D model - Small Outline Packages - DGK
click to zoom

TLC5615CDGKR Details

  • Manufacturer Part Number:

    TLC5615CDGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.075 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    12.5 µs

  • Settling Time-Nom (tstl):

    12.5 µs

  • Supply Current-Max:

    0.35 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLC5615CDGKR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following a star-grounding topology, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to prevent crosstalk.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close to the VCC pin as possible, and add a 100nF capacitor in parallel to filter high-frequency noise. Ensure the power supply is stable and within the recommended operating range (2.7V to 5.5V).
  • The TLC5615CDGKR can operate up to 50MHz, but the maximum clock frequency depends on the specific application and system requirements. It's recommended to consult the datasheet and perform thorough testing to ensure reliable operation at higher frequencies.
  • The TLC5615CDGKR has a maximum output current of 30mA per channel and a maximum output voltage of VCC - 0.5V. Ensure that the load impedance and voltage requirements are within these limits to prevent damage to the device or degradation of its performance.
  • Use a 3-wire serial interface (SCL, SDA, and CS) to program the internal registers. Ensure the CS pin is properly controlled to prevent accidental writes or reads. Consult the datasheet for specific programming sequences and timing requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC5615CDGKR Overview

Use the download button to access the TLC5615CDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
