TLC5615ID - Texas Instruments

Description: 10-bit, single-channel, low-power DAC with 12.5us settling time and power-on reset

Download TLC5615ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

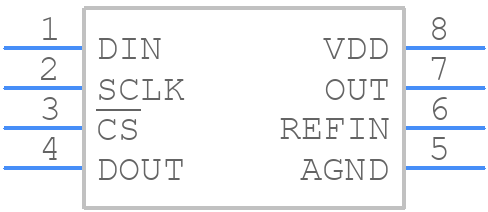

Symbol
TLC5615ID - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC5615ID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A height 1.75
click to zoom
3D Models
TLC5615ID - Texas Instruments - 3D model - Small Outline Packages - D0008A height 1.75
click to zoom

TLC5615ID Details

  • Manufacturer Part Number:

    TLC5615ID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.075 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    12.5 µs

  • Settling Time-Nom (tstl):

    12.5 µs

  • Supply Current-Max:

    0.35 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLC5615ID Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This sequence helps prevent unwanted voltage transients and ensures proper device operation.
  • To ensure accurate voltage reference output, it's essential to decouple the VREF pin with a 0.1uF capacitor to GND, and use a low-impedance voltage source for VCC. Additionally, keep the VREF pin away from noise sources and ensure good PCB layout practices.
  • The TLC5615ID can drive up to 10nF of capacitive load. Exceeding this limit may cause instability or oscillations in the device. If a larger capacitive load is required, consider adding a buffer amplifier or using a device with higher drive capability.
  • To minimize noise and EMI, use a multi-layer PCB with a solid ground plane, keep signal traces short and away from noise sources, and use shielding or guard rings around sensitive signals. Additionally, consider using a low-pass filter or ferrite beads to filter out high-frequency noise.
  • The TLC5615ID has a thermal derating curve of 5.5mW/°C above 25°C. This means that for every degree above 25°C, the maximum power dissipation decreases by 5.5mW. Ensure proper thermal management and heat sinking to maintain reliable device operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC5615ID Overview

Use the download button to access the TLC5615ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
