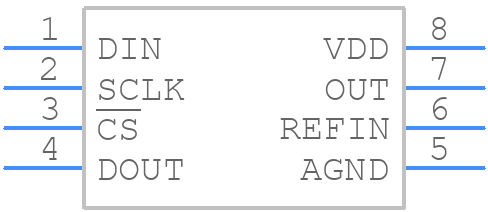

TLC5615IDGK - Texas Instruments

TLC5615IDGK Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the TLC5615IDGK to minimize noise and ensure reliable operation?
  Texas Instruments recommends a star-connected layout for the DAC outputs, with the analog and digital grounds separated and connected at a single point. Additionally, use a solid ground plane, and keep the analog and digital signal traces separate and away from each other.
• How do I handle the power-on reset (POR) and brown-out reset (BOR) in my design?
  The TLC5615IDGK has a built-in POR and BOR circuitry. To handle these, ensure that the power supply ramps up slowly (typically 1-2 ms) and that the voltage reaches the minimum operating voltage (VDD) before the clock signal is applied. You can also add external POR and BOR circuits if needed.
• What is the maximum clock frequency that can be used with the TLC5615IDGK?
  The TLC5615IDGK can operate up to 20 MHz clock frequency, but it's recommended to limit it to 10 MHz for reliable operation and to minimize power consumption.
• How do I ensure that the DAC outputs are not corrupted during power-up or power-down?
  Use the SYNC pin to synchronize the DAC outputs with the clock signal. This ensures that the DAC outputs are updated only when the clock signal is stable. Additionally, use the CLR pin to clear the DAC outputs to a known state during power-up or power-down.
• What is the recommended method for reducing electromagnetic interference (EMI) in my design?
  Use a low-pass filter or a ferrite bead on the DAC output lines to reduce high-frequency noise. Additionally, use a shielded enclosure and keep the analog and digital circuits separated to minimize EMI.
