TLC5618AMJGB - Texas Instruments

Description: 12-Bit, 2.5 us Dual DAC, Serial Input, Pgrmable Settling Time, Simultaneous Update, Low Power

Download TLC5618AMJGB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

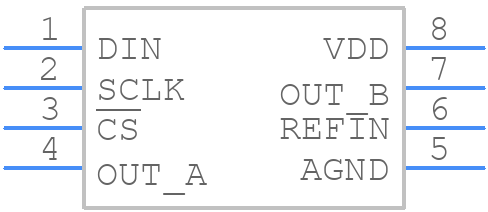

TLC5618AMJGB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC5618AMJGB - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - JG (R-GDIP-T8
click to zoom
3D Models
TLC5618AMJGB - Texas Instruments - 3D model - Ceramic Dual-In-Line Packages - JG (R-GDIP-T8
click to zoom

TLC5618AMJGB Details

  • Manufacturer Part Number:

    TLC5618AMJGB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    4.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-GDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.58 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.075 MHz

  • Seated Height-Max:

    5.08 mm

  • Settling Time-Max:

    2.5 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TLC5618AMJGB Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the input signals. This ensures proper device operation and prevents latch-up.
  • The TLC5618 has a limited output current of 30mA per channel. To handle this, use an external buffer or amplifier if you need to drive a heavier load. You can also use an external resistor to limit the output current.
  • The TLC5618's performance is affected by temperature. The device's accuracy, linearity, and output voltage swing degrade with increasing temperature. Ensure proper thermal management and consider the temperature range in your design.
  • No, the TLC5618 is not designed to be used as a voltage regulator. It's a 16-bit, 8-channel digital-to-analog converter (DAC) and should only be used for its intended purpose.
  • Use a reliable communication protocol, such as SPI or I2C, and ensure proper signal integrity by using suitable transmission lines, termination, and shielding. Also, consider using error-checking mechanisms, such as CRC or checksums.
