The recommended power-on sequence is to apply VCC first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents latch-up or incorrect output states.
To ensure accurate DAC output voltages, it's essential to use a stable and noise-free VREF input, and to decouple the VREF pin with a capacitor to ground. Additionally, the output voltage should be buffered with an op-amp if it's not being used directly with a high-impedance load.
The maximum clock frequency for the TLC5620CDG4 is 20 MHz. Exceeding this frequency may result in incorrect DAC output voltages or device malfunction.
Yes, the TLC5620CDG4 can be used with a single supply voltage, but the output voltage range will be limited to 0 to VCC. If a bipolar output voltage range is required, a dual supply voltage (VCC and VEE) must be used.
To enter power-down mode, the PD pin should be pulled low. In this mode, the DAC output is disconnected from the output pin, and the device consumes minimal power. When exiting power-down mode, the PD pin should be pulled high, and the device will return to normal operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC5620CDG4 Overview

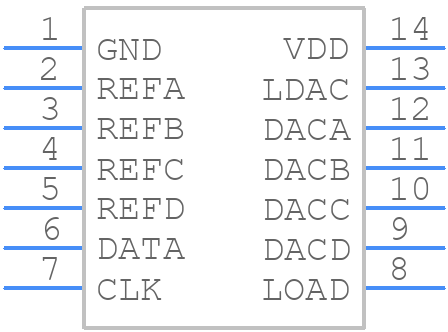

Use the download button to access the TLC5620CDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC56,
or try a keyword search, such as Digital to Analog Converters
