TLC5628CN - Texas Instruments

Description: 8-Bit, 10 us Octal DAC, Serial Input, Pgrmable for 1x or 2x Output, Simultaneous Update, Low Power

Download TLC5628CN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

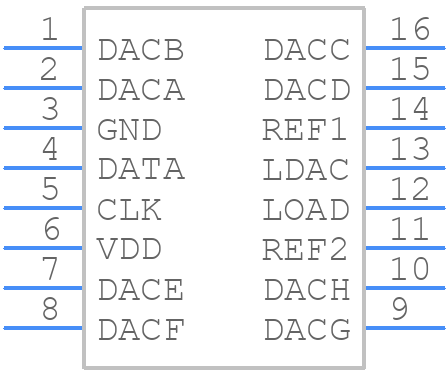

TLC5628CN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC5628CN - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T16)-1
click to zoom
3D Models
TLC5628CN - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T16)-1
click to zoom

TLC5628CN Details

  • Manufacturer Part Number:

    TLC5628CN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.045 MHz

  • Seated Height-Max:

    5.08 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TLC5628CN Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper device operation and prevents potential latch-up.
  • To ensure accurate conversions, it's essential to provide a stable and noise-free power supply, use a high-quality reference voltage, and minimize noise on the analog input signal. Additionally, ensure the device is operated within its specified temperature range.
  • The maximum clock frequency for the TLC5628CN is 20 MHz. Exceeding this frequency may result in inaccurate conversions or device malfunction.
  • Yes, the TLC5628CN can be used in a multiplexed system. However, it's essential to ensure that the device is properly reset between conversions, and the analog input signal is properly switched to prevent signal degradation.
  • To handle overvoltage conditions, use external protection circuitry, such as a voltage clamp or a resistive divider, to limit the analog input voltage to within the specified range of 0 to VREF.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC5628CN Overview

Use the download button to access the TLC5628CN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
