A good PCB layout for the TLC59025IDBQR involves keeping the LED current sense resistors close to the device, using a solid ground plane, and minimizing the length of the LED current paths. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper thermal management, it's recommended to attach a heat sink to the TLC59025IDBQR, especially in high-current applications. The heat sink should be designed to keep the junction temperature below 125°C. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components.
The recommended input capacitor value for the TLC59025IDBQR is 1-10uF, depending on the input voltage and current requirements. A larger capacitor value can help reduce input voltage ripple, but may increase the startup time.
To troubleshoot issues with the TLC59025IDBQR, start by checking the input voltage and current, ensuring they are within the recommended range. Verify that the LED current sense resistors are properly connected and that the LED voltage is within the recommended range. Check for any short circuits or open circuits on the PCB. Use an oscilloscope to measure the LED current and voltage waveforms to identify any anomalies.
Yes, the TLC59025IDBQR can be used in a dimming application. The device has a built-in PWM dimming capability, which allows for adjustable brightness control. The dimming frequency should be set between 100Hz to 1kHz, and the duty cycle should be adjusted to achieve the desired brightness level.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC59025IDBQR Overview

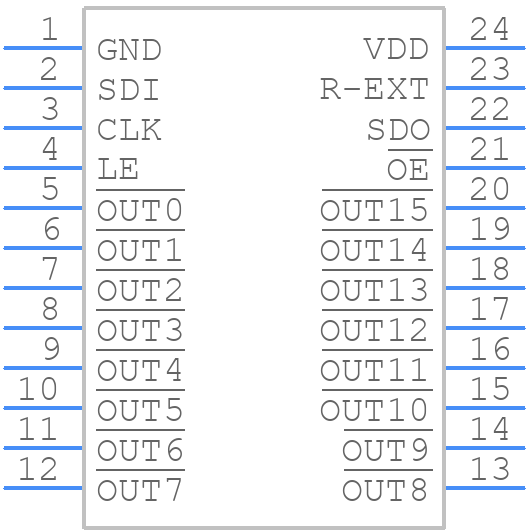

Use the download button to access the TLC59025IDBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC59,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
