TLE-117-01-G-DV-P-TR footprint, schematic symbol and 3D model by SAMTEC

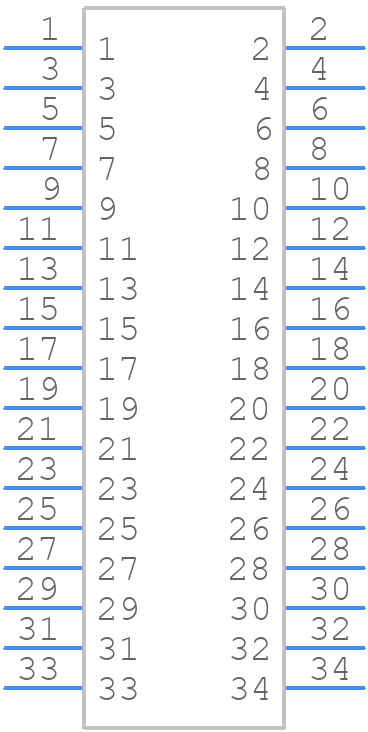

Symbol

click to zoom

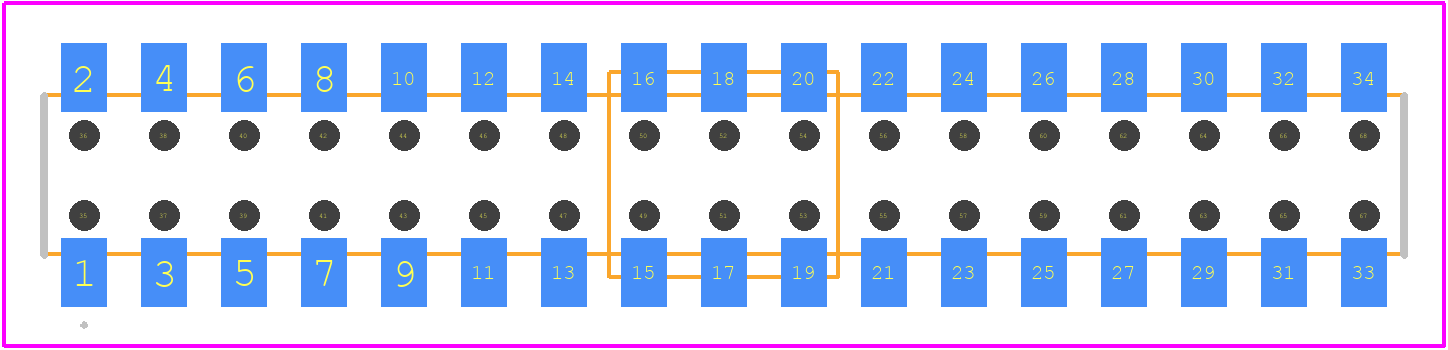

PCB Footprints

TLE-117-01-G-DV-P-TR - SAMTEC PCB footprint - Other - Other - TLE-117-01-G-DV-P-TR-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLE-117-01-G-DV-P-TR
Part Number TLE-117-01-G-DV-P-TR
Manufacturer SAMTEC
Pin Count 34
Part Category Connector
Package Category Other
Footprint Name Other - TLE-117-01-G-DV-P-TR-2
Released Date Aug 15, 2023
Last Modified Date Aug 16, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

TLE-117-01-G-DV-P-TR Details

Manufacturer Part Number:
TLE-117-01-G-DV-P-TR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
8.4
Additional Feature:
TIGER BEAM
Body Breadth:
0.157 inch
Body Depth:
0.177 inch
Body Length:
1.326 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.078 inch
Mating Contact Row Spacing:
0.078 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
4.445 mm
Plating Thickness:
10u inch
Rated Current (Signal):
3.2 A
Reference Standard:
UL
Terminal Pitch:
2 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
34
UL Flammability Code:
94V-0

TLE-117-01-G-DV-P-TR Frequently Asked Questions (FAQs)

The recommended mating sequence for the TLE-117-01-G-DV-P-TR is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the TLE-117-01-G-DV-P-TR is designed for high-speed applications and can support data rates up to 10 Gbps. However, it's essential to follow proper PCB design and layout guidelines to minimize signal degradation and ensure reliable performance.
The TLE-117-01-G-DV-P-TR has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the TLE-117-01-G-DV-P-TR is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The typical insertion force for the TLE-117-01-G-DV-P-TR is around 10-15 N (2.2-3.3 lbf) per contact, although this can vary depending on the specific application and mating conditions.
