Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
The TLE2021QDRG4Q1 has a thermal pad that must be connected to a solid ground plane to dissipate heat. Additionally, consider using thermal vias, heat sinks, or thermal interface materials to further reduce thermal resistance. Ensure good airflow around the device and avoid blocking airflow with nearby components.
The recommended input termination is a 50-ohm resistor to ground, while the output termination depends on the specific application. For example, a 50-ohm resistor to VCC or a 100-ohm differential termination may be used. Consult the datasheet and application notes for specific guidance.
Ensure a stable power supply with minimal noise and ripple. Use a low-ESR capacitor for power supply decoupling, and consider using a voltage regulator module (VRM) or a low-dropout regulator (LDO) to regulate the power supply. Follow the recommended biasing scheme in the datasheet, and ensure the input common-mode voltage is within the specified range.
Follow good EMI/EMC design practices, such as using shielding, grounding, and filtering. Ensure the device is placed in a shielded area, and use EMI filters or common-mode chokes to reduce emissions. Consult the datasheet and application notes for specific guidance on EMI/EMC considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2021QDRG4Q1 Overview

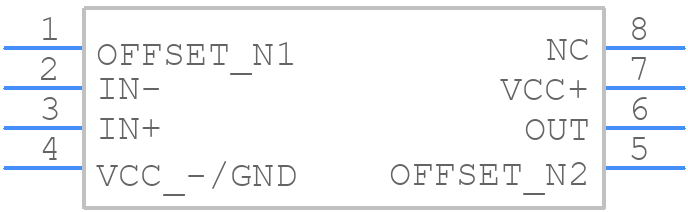

Use the download button to access the TLE2021QDRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
