TLE2022ACD - Texas Instruments

Description: Texas Instruments TLE2022ACD, Dual Op Amp, 1.7MHz, 5 → 28 V, 8-Pin SOIC

Download TLE2022ACD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

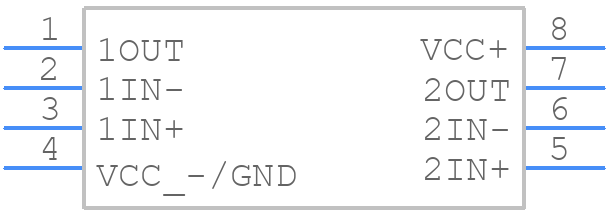

TLE2022ACD - Texas Instruments - PCB symbol
