Texas Instruments provides a recommended PCB layout in the application note SLVAE03, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The TLE2024AQDWREP has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Also, follow the thermal management guidelines in the datasheet and application notes.
The recommended input capacitance is 10nF to 100nF, and the recommended output capacitance is 10nF to 100nF. The capacitance values affect the stability, noise, and transient response of the device. Refer to the application note SLVAE03 for more information on capacitance selection and PCB layout considerations.
Refer to the datasheet and application notes for specific biasing and configuration guidelines. Ensure that the input and output voltage ranges are within the recommended specifications, and that the device is properly configured for the desired operating mode (e.g., unity gain, non-inverting, or inverting).
Common failure modes include overheating, overvoltage, and electrostatic discharge (ESD). Prevent these by following proper thermal management, voltage regulation, and ESD protection guidelines. Also, ensure that the device is handled and stored properly during manufacturing and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2024AQDWREP Overview

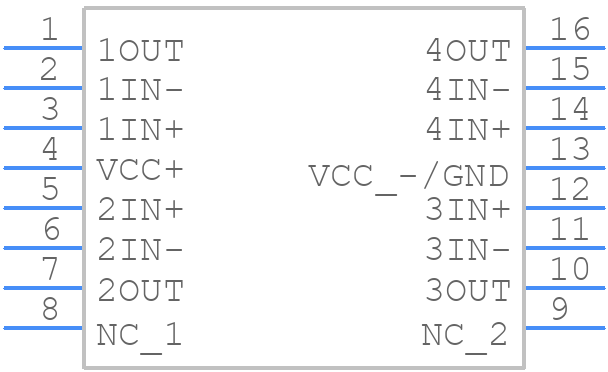

Use the download button to access the TLE2024AQDWREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
