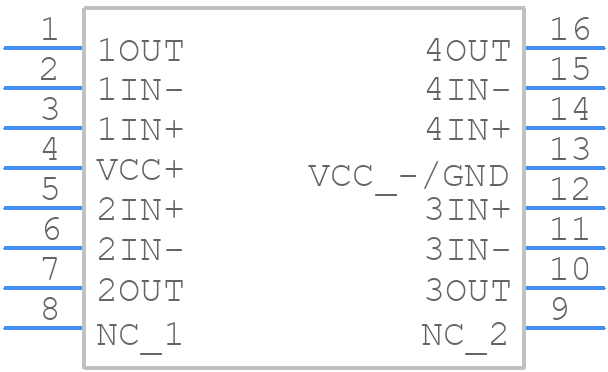

TLE2024BMDW - Texas Instruments

TLE2024BMDW Details

• Manufacturer Part Number:

  TLE2024BMDW

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Pin Count:

  16

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.09 µA

• Bias Current-Max (IIB) @25C:

  0.07 µA

• Common-mode Reject Ratio-Min:

  93 dB

• Common-mode Reject Ratio-Nom:

  108 dB

• Frequency Compensation:

  YES

• Input Offset Current-Max (IIO):

  0.006 µA

• Input Offset Voltage-Max:

  600 µV

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  10.3 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  YES

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -20 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883

• Seated Height-Max:

  2.65 mm

• Slew Rate-Min:

  0.4 V/us

• Slew Rate-Nom:

  0.5 V/us

• Subcategory:

  Operational Amplifier

• Supply Current-Max:

  0.3 mA

• Supply Voltage Limit-Max:

  20 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  2000

• Voltage Gain-Min:

  1000000

• Wideband:

  NO

• Width:

  7.5 mm
