Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
The TLE2024MDW has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and keep the device away from heat sources. Also, consider derating the device's power consumption at high temperatures to prevent overheating.
Texas Instruments recommends using a 50-ohm termination resistor at the input and output pins to match the impedance of the transmission lines and prevent signal reflections. Additionally, use a series resistor-capacitor (RC) filter at the input to filter out high-frequency noise.
Use a shielded enclosure, keep the device away from noise sources, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, ensure that the device is properly grounded and use a low-pass filter at the output to reduce EMI.
Power up the device in the following sequence: VCC, VREF, and then the input signals. Power down in the reverse sequence. Ensure that the input signals are stable and within the recommended range before powering up the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2024MDW Overview

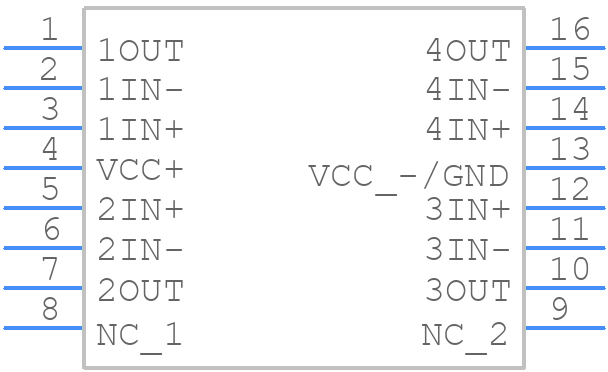

Use the download button to access the TLE2024MDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
