Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
The TLE2027IDR has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and avoid overheating by keeping the device within the recommended operating temperature range. Also, consider using thermal relief patterns on the PCB to reduce thermal stress.
The input bias current of the TLE2027IDR can affect the accuracy of your circuit. To minimize the impact, use a high-impedance source, and consider adding a voltage follower or buffer stage to reduce the input current. Additionally, ensure that the input signal is within the recommended common-mode voltage range.
To ensure EMC, follow proper PCB layout and routing guidelines, use shielding and filtering where necessary, and consider adding electromagnetic interference (EMI) filters or common-mode chokes to reduce radiation. Also, ensure that the device is operated within the recommended frequency range and that the input and output signals are properly terminated.
The TLE2027IDR has a low quiescent current, making it suitable for low-power applications. However, ensure that the power supply is clean and well-regulated, and consider using a low-dropout regulator (LDO) or a switching regulator to minimize power consumption. Also, consider using power-saving modes or shutdown features to reduce power consumption when the device is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2027IDR Overview

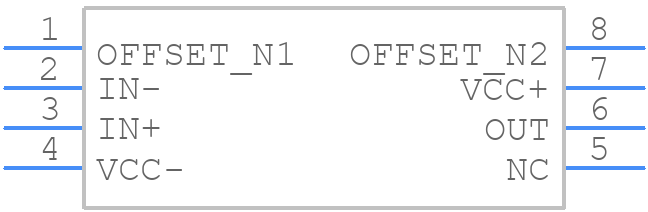

Use the download button to access the TLE2027IDR schematic symbol, PCB footprint, and 3D model.
