Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider using a current-limiting resistor or a buffer amplifier to reduce the output current and power dissipation. Additionally, follow proper PCB design and layout guidelines to minimize thermal resistance.
The recommended input voltage range for the TLE2027MD is 4.5V to 16V. The output voltage is proportional to the input voltage, with a typical gain of 2. However, the output voltage may deviate from the ideal value due to internal voltage drops and temperature effects. Consult the datasheet for more information on input voltage range and output voltage characteristics.
Use a high-quality voltage reference, such as the TLE2425 or REF3020, to provide a stable input voltage. Additionally, consider using a voltage regulator, such as the TLV703 or LP2985, to regulate the input voltage. Also, follow proper PCB design and layout guidelines to minimize thermal resistance and ensure good thermal coupling between the TLE2027MD and the voltage reference or regulator.
The TLE2027MD has a higher output current capability (up to 100mA) and a wider input voltage range (4.5V to 16V) compared to the OPA277 or OP07. Additionally, the TLE2027MD has a lower noise floor and higher common-mode rejection ratio (CMRR) than the OPA277 or OP07, making it more suitable for high-precision and high-speed applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2027MD Overview

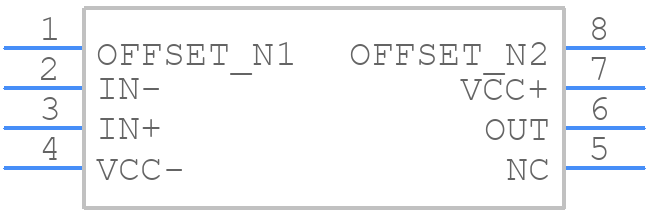

Use the download button to access the TLE2027MD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
