Texas Instruments recommends a star-ground configuration for the TLE2037MD, with the device placed close to the analog circuitry and the analog and digital grounds separated. A solid ground plane and short traces are also recommended to minimize noise and EMI.
The TLE2037MD requires a specific power-up sequence to ensure proper operation. The recommended sequence is to power up the analog supply (VCC) first, followed by the digital supply (VDD), and then the clock signal. This sequence helps prevent latch-up and ensures correct device operation.
The TLE2037MD can handle clock frequencies up to 100 kHz, but the maximum frequency may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information on clock frequency limitations.
To ensure accurate voltage reference performance, it's essential to provide a stable and noise-free power supply, maintain a consistent temperature, and minimize noise coupling into the device. Additionally, the TLE2037MD should be operated within its recommended operating conditions, and the output voltage should be buffered with a low-impedance buffer amplifier if necessary.
The TLE2037MD is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's essential to consult the datasheet and application notes for more information on temperature-related limitations and to ensure that the device is operated within its recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2037MD Overview

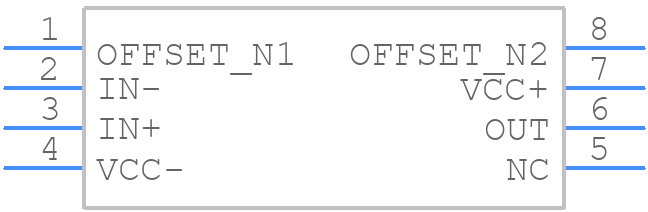

Use the download button to access the TLE2037MD schematic symbol, PCB footprint, and 3D model.
